Description

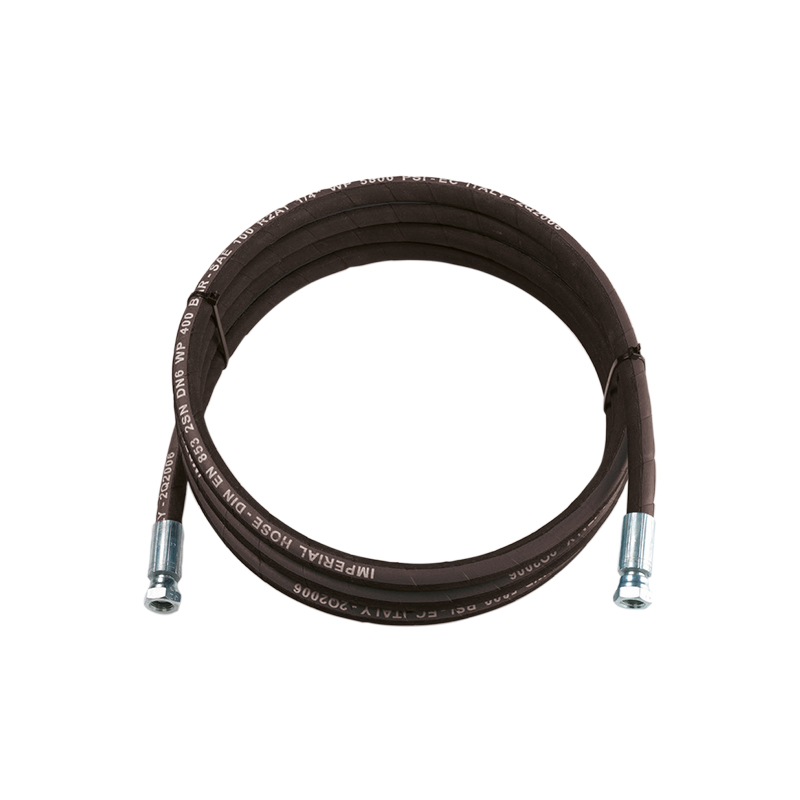

SAE100 R1AT high-pressure rubber hoses with straight BSP thread female connections, suitable for conveying high-pressure OIL and GASOIL. Oil-resistant synthetic rubber underlay, rubber cover with high resistance to abrasion, ozone attack and weathering, reinforced with 1 treated steel braid.
| Nominal diameter | 1/2 |
|---|---|
| Ø inside | 12,7 mm |
| ø outside | 20,6 mm |
| Working pressure | 160 bar |
| Burst pressure | 640 bar |
| Min bending radius | 180 mm |
| Operating temperature range | -40/+100°C |
| Length hose | 5 m |
