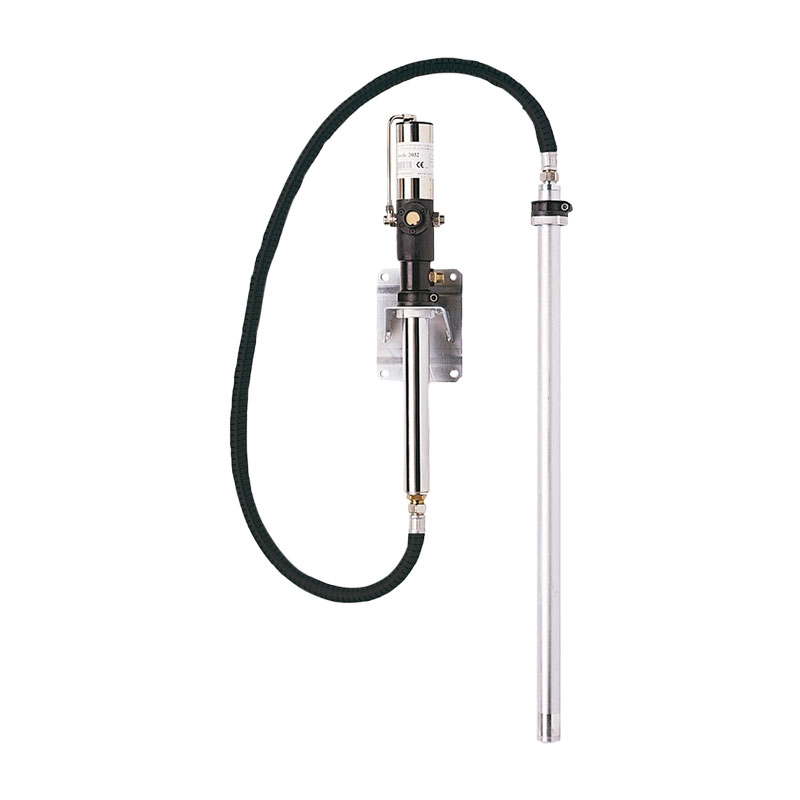

Flexbimec – PNEUMATIC PUMPS – Medium Viscosity

Description

Pneumatic pumps for the supply of low and medium viscosity oils and antifreeze for the use in mobile kits or in pipe works.

• Compressed air supply: Pressure min 2 – max 8 bar (30 – 116 psi)

• Compression ratio: 3:1

• Outlet pressure: 24 bar (350 psi)

• Delivery: 21 l/min

• Connection compressed air: 1/4” BSP (F)

• Connection lubricant outlet: 1/2” BSP (M)

• Max air consumption with 8 bar pressure: 210 l/min

• Length suction tube (mm): 1300 mm

• Diameter suction tube: 40 mm

• Suitable for drums of: 208/1000 L

• Weight: 5.4 kg

• Dimensions (LxWxH) (mm): 95 x 95 x 1500 mm
