Description

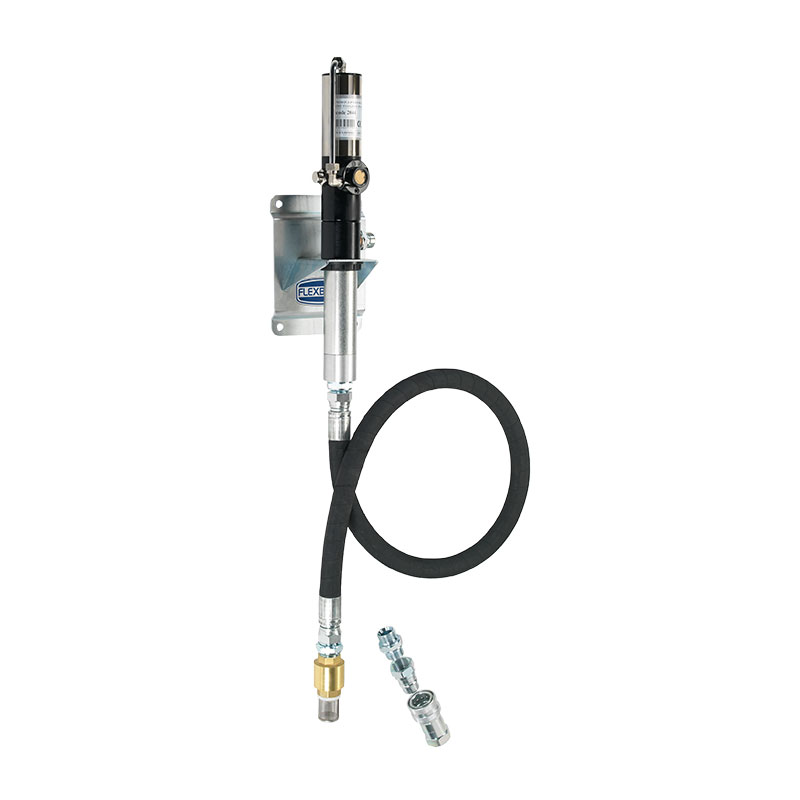

Pneumatic pumps for the transfer of low viscosity oils and antifreeze at high delivery and short pumping distances.
| Power | Compressed air Min 2 Max 8 bar (30 – 116 psi) |
|---|---|
| Compression ratio | 1:1 |
| Outlet pressure | 8 bar (116 psi) |
| Flow range | 48 l/min |
| Connection compressed air inlet | F 1/4” BSP |
| Connection lubricant outlet | M 3/4” BSP |
| Max air consumption with 8 bar pressure | 210 l/min |
| Length suction tube | – |
| Diameter suction tube | 55 mm |
| Suitable for pails / drums of | wall bracket |
| Weight | 4,5 kg |
| Dimensions | 110x110x530 |
| Series | Standard series |
| Type of seal | PU |
