Description

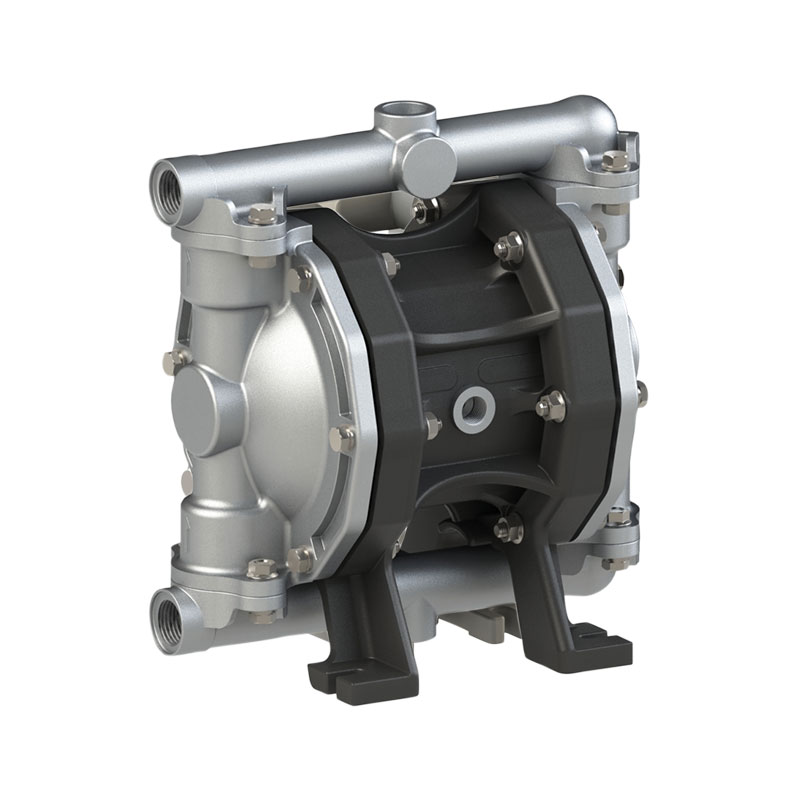

Pneumatic double diaphragm pump, selfpriming up to 5 m suction lift, working also in dry running condition, without any electric drive, suitable for the use also with fluids of higher viscosity and for fluids containing particles up to 3 mm size, body in PP, diaphragms in NBR + PTFE, balls in stainless steel, gaskets in EPDM, seats in PP.
The pump is constructed in accordance with Directive ATEX 2014/34/EU – zone 2.
- MAX FLOW RATE: 55L/Min
- MAX SUCTION LIFT: 5m
- COMP.AIR SUPPLY: 2-8 bar
- CONNECTION COMPRESSION AIR INLET: 1/4” BSP F
- CONNECTIONS FLUID OUTLET INLET: 1/2” BSP F
- CONSUMPTION COMPRESSED AIR: 200L/Min
- WEIGT: 4kg
- DIMENSION (LxWxH)mm: 234x156x245
