Description

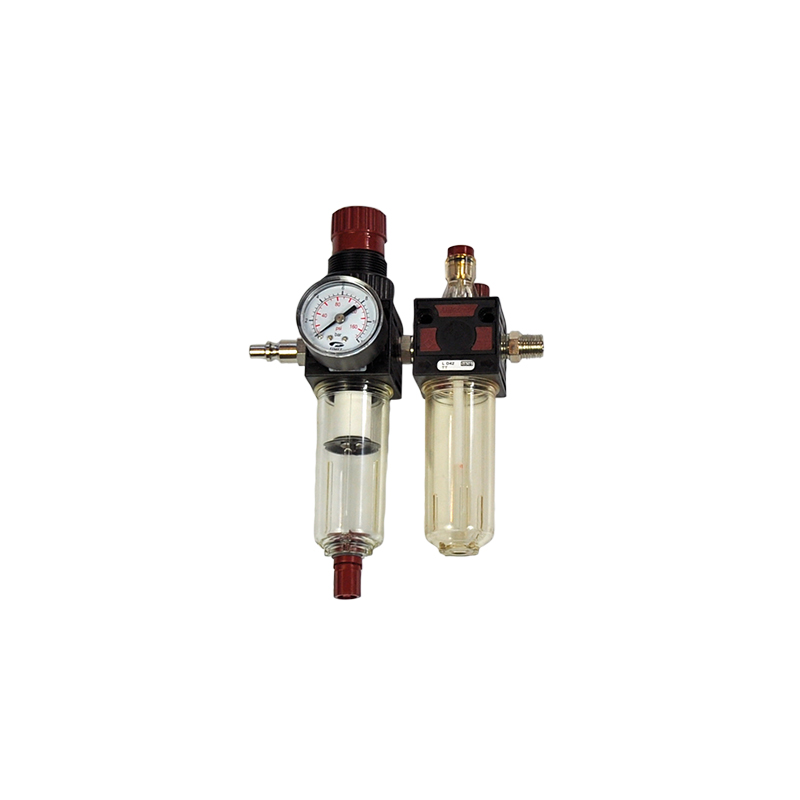

Combined compressed air treatment kit, composed of pressure regulator with manometer, air filter with automatic bleeding, air line oil mist lubricator, lockable regulating screw, air nipple for hose connection and connection adapter for the installation at the compressed air inlet of the pump.
Air line lubricator: providing a proportional oil mist, enables a precise regulation of the lubricating oil even at low pressure. With adjustment screw and connection adapter for the installation at the compressed air inlet of the pump. (part 7151 included)
| Connections | M 1/4” BSP |
|---|---|
| Max working pressure | 8 bar |
| Max air fl ow (l/min.) | 850 |
| Capacity lubricator (cm³) | 42 cc |
| Operating temperature range | 5 – 50°C |
| Dimensions (mm) | 42x42x157 |
Combined compressed air pressure regulator: with manometer and air filter with automatic bleeding, with lockable regulating screw, air nipple for hose connection and connection adapter for the installation at the compressed air inlet of the pump. (part 7180 included)
| Connections | M 1/4” BSP |
|---|---|
| Filtration degree (microns) | 20 |
| Regulation range | 0 – 8 bar |
| Max air fl ow (l/min.) | 850 |
| Collection capacity condensate (cm³) | 22 cc |
| Operating temperature range | 5 – 50°C |
| Dimensions (mm) | 42x42x198 |
