Description

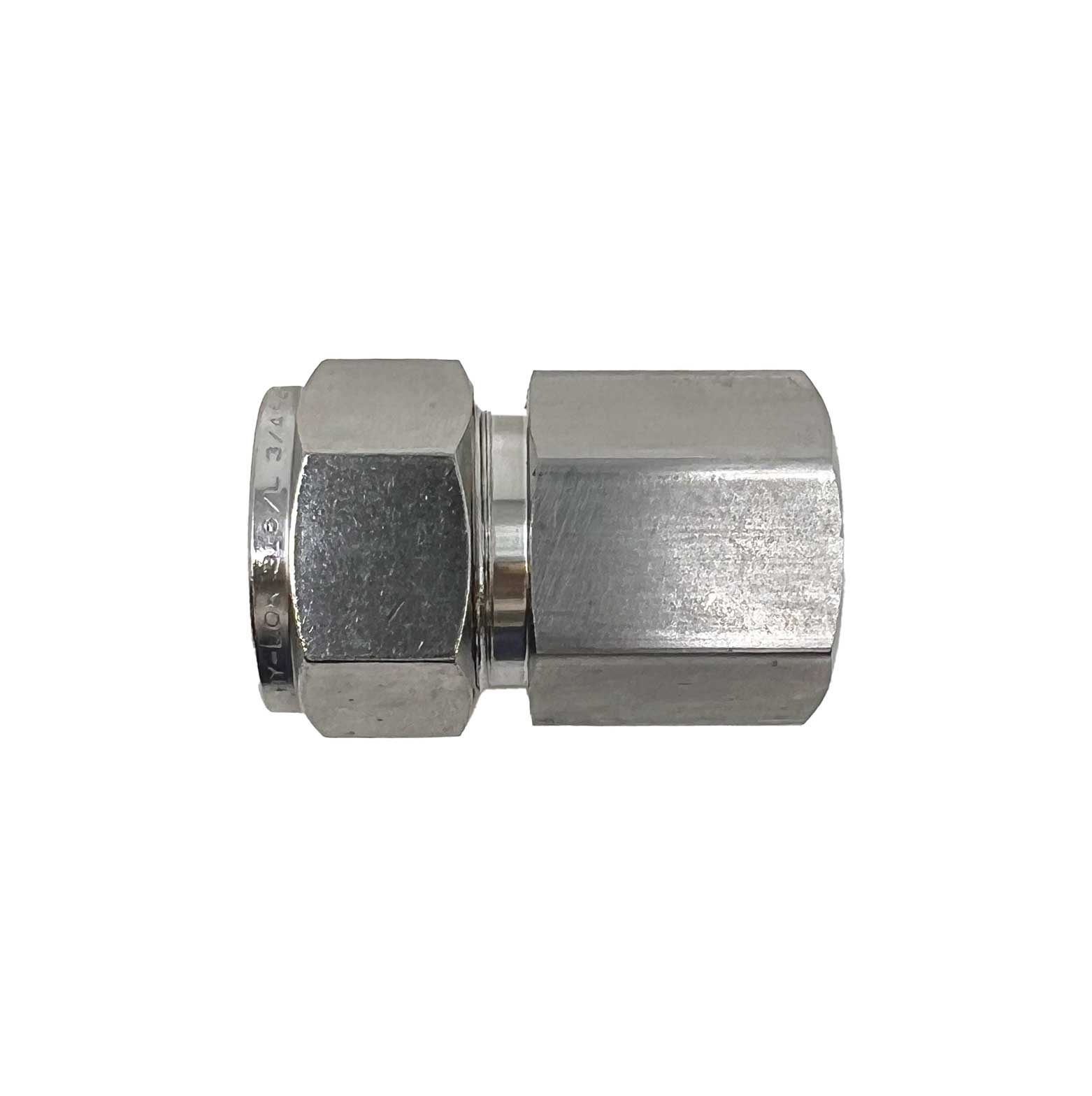

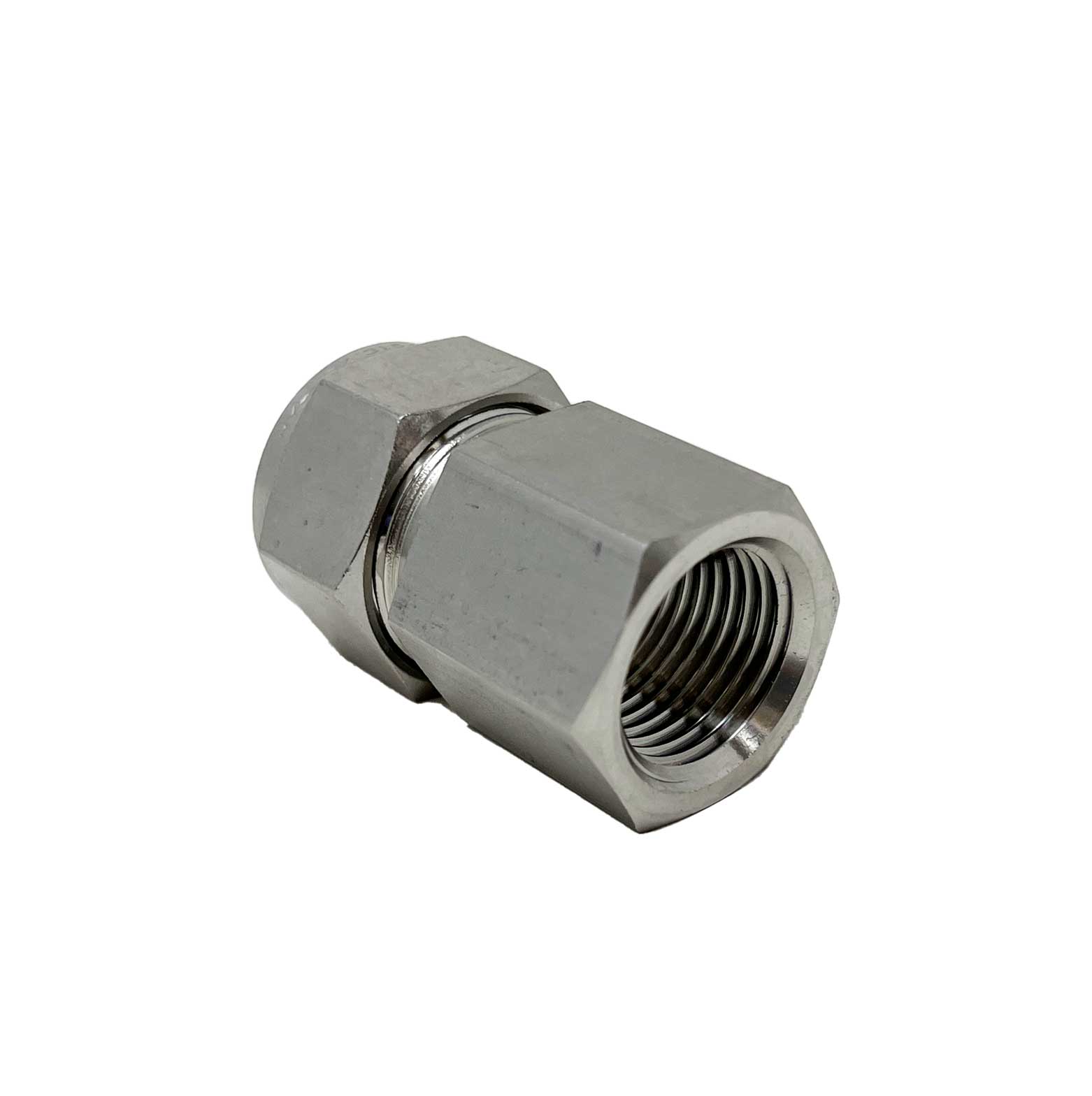

Compression fitting | Tube To Female Pipe 3/4″ | Female Connector 1/2″
- Tube O.D. :Â 3/4″
- FEMALE : 1/2″ NPT
- Stainless Steel
- Temp. Rating : -320F to 1200F (-196C to 649C)
- CFC
DOUBLE FERRULE COMPRESSION TUBE FITTINGS PROVIDE LEAK-FREE PERFORMANCE FOR THE MOST DEMANDING APPLICATIONS.
Two ferrule tube fittings are designed and manufactured to meet the rigorous specifications required of industrial applications. This Tube fittings are commonly used throughout the oil and gas, pulp & paper, petrochemical/chemical processing, research laboratories, aerospace and defense, chemical processing, power generation, cryogenic and semiconductor, shipbuilding and heavy industrial industries.

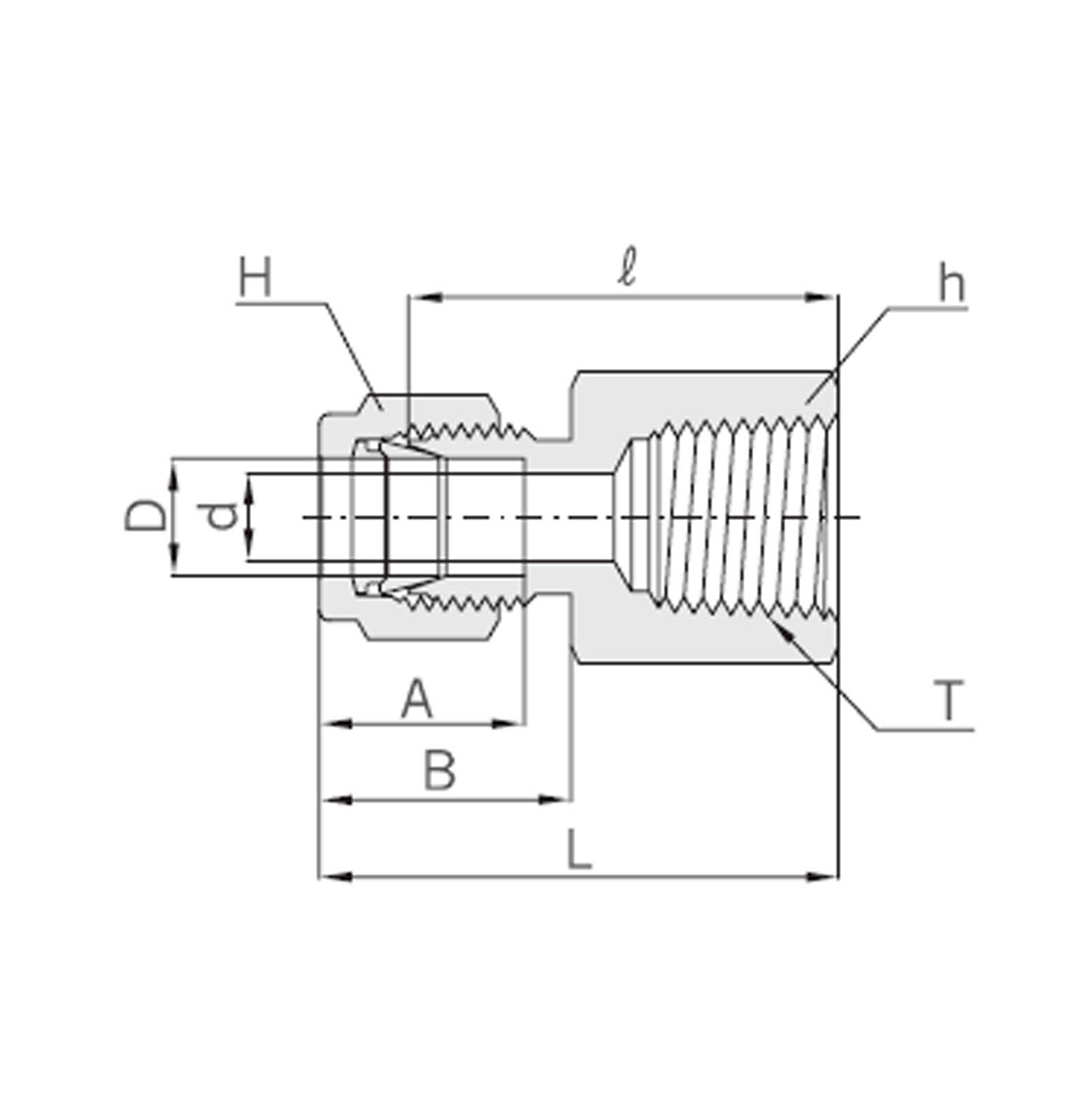

Available in numerous configurations and sizes, our tube fittings are made up of four parts consisting of a body, front ferrule, back ferrule, and nut. Outstanding leak-tight connections are consistent as the two-ferrule design compensates for any tolerances in tube outer diameter, wall, thickness, and material hardness.
HIGH QUALITY
This tube fittings are manufactured to stringent quality control program and standards which assure the highest quality available in the industry. ASME Quality and ISO 9001:2015 Certifications. Common applications include pharmaceutical, life support, and oil & gas.
To fulfill the need for leak-free gas and fluid containment, our tube fittings are the ideal solution.
